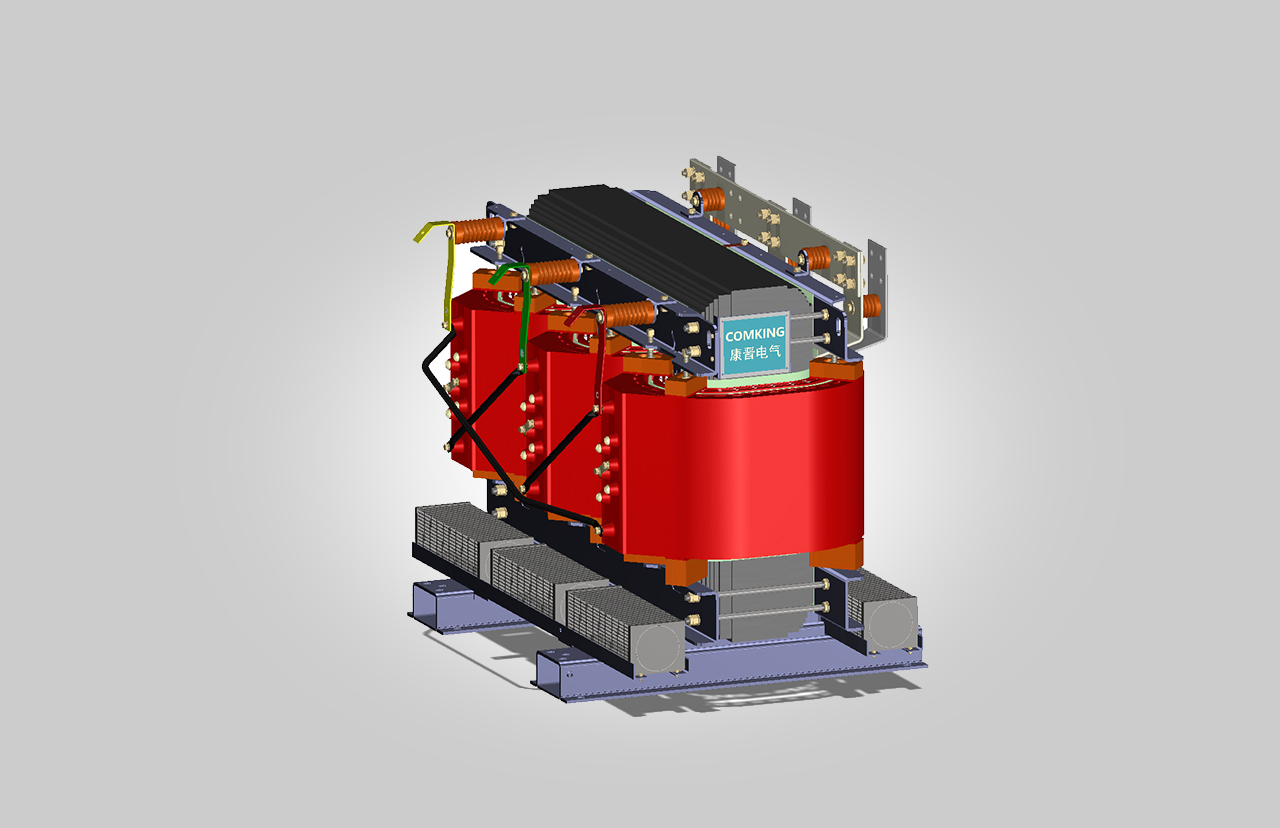

The epoxy resin dry-type transformer uses electrical oriented silicon steel as the core material, and the coil is cast with epoxy resin. The product has good fire resistance, moisture resistance, no pollution, flame retardant, self-extinguishing fire. It is suitable for indoor power distribution rooms and box-type substations.

Heat resistance grade: F grade, H grade.

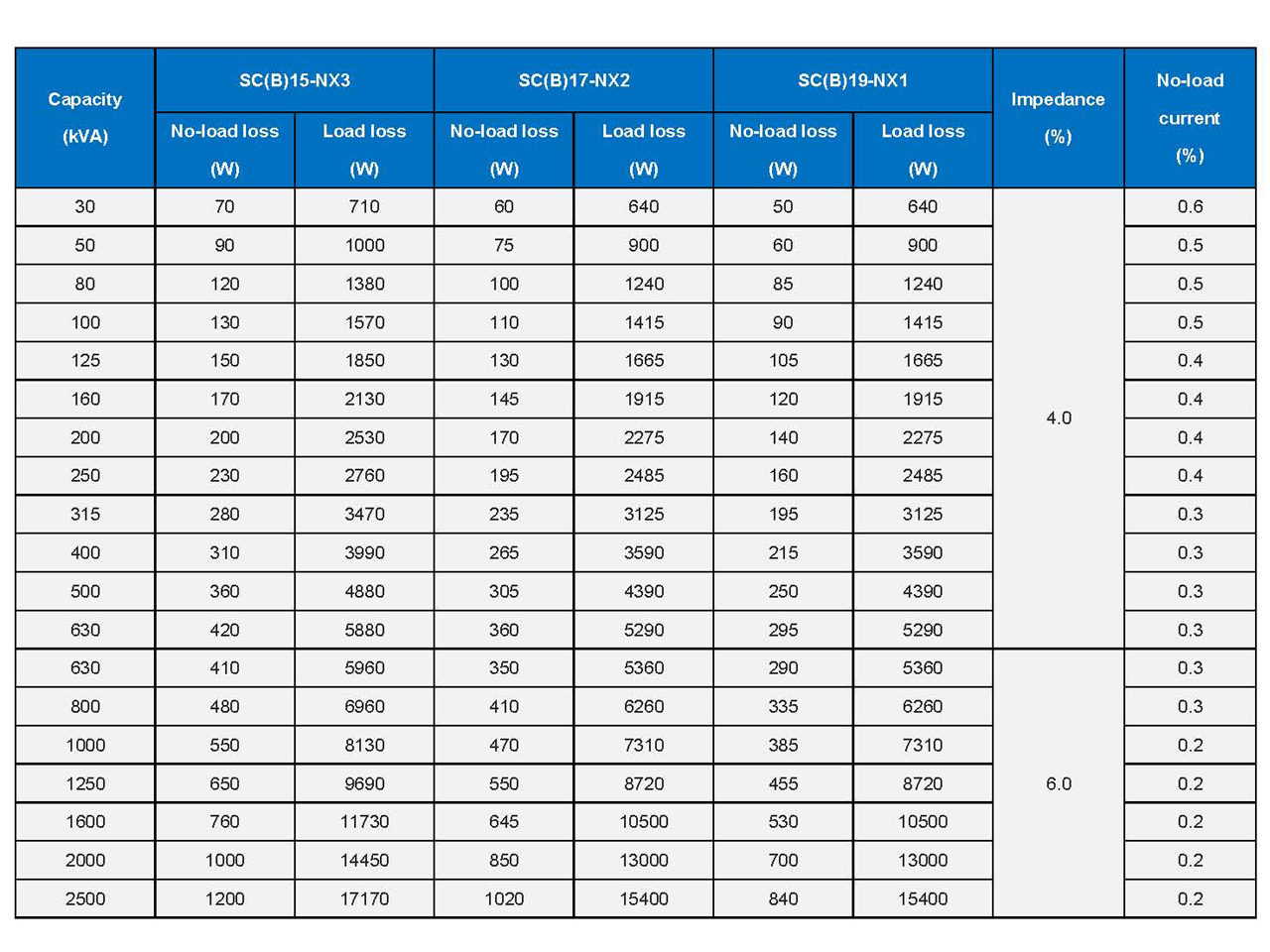

10kV energy-saving three-phase dry-type silicon steel core non-excitation voltage regulating transformer main parameter table

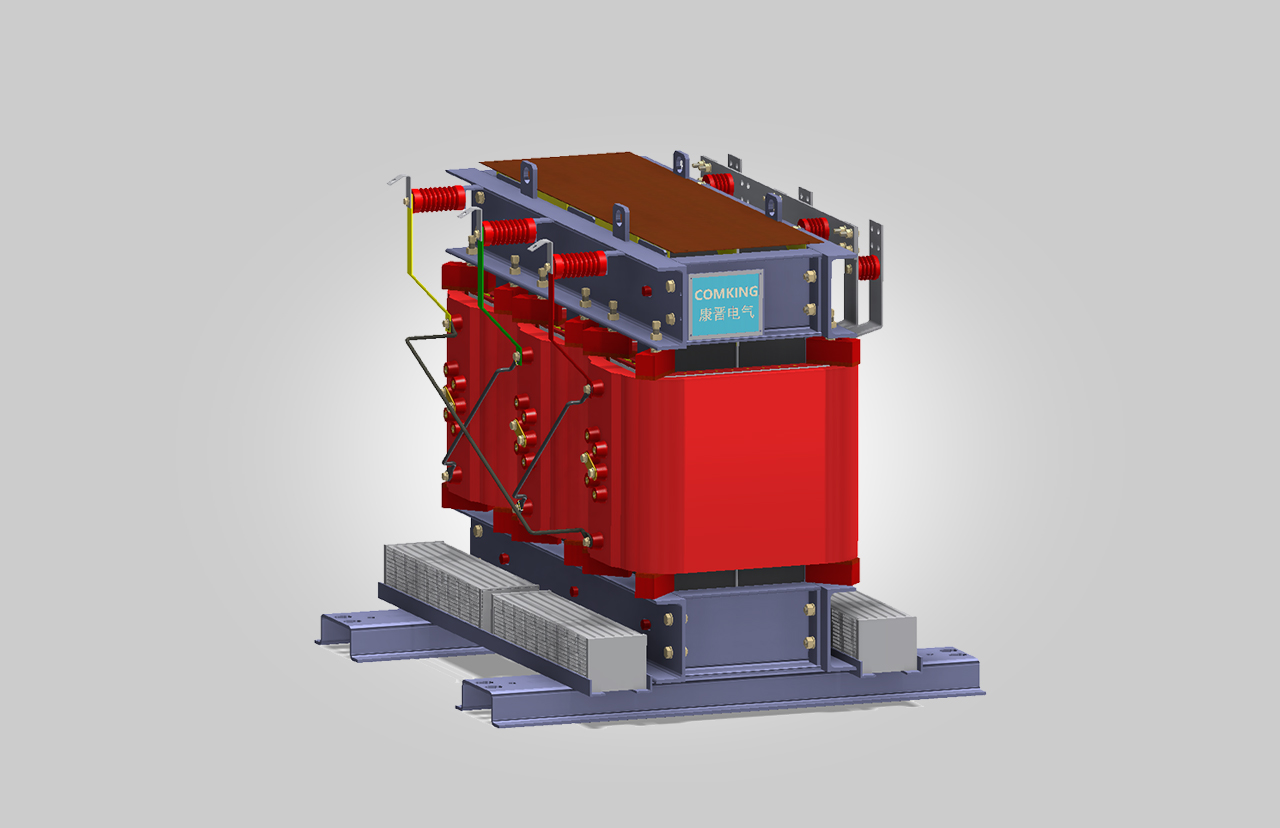

The amorphous alloy dry-type transformer uses amorphous alloy as the core material, and the coil is cast with epoxy resin. The product has good fire resistance, moisture resistance, no pollution, flame retardant, self-extinguishing fire. It is suitable for indoor power distribution rooms and box-type substations.

Heat resistance grade: F grade, H grade.

Main parameter table of 10kV energy-saving three-phase dry-type amorphous alloy iron core non-excitation voltage regulating transformer.
