Made of high-quality raw materials by layered injection molding, the 15kV/630A Shielded Front Connector is suitable for ring main units, delivery-type substations, cable branch boxes and other occasions. With electric performance higher than national standards, it is easy to be installed and forms a fully sealed and shielded structure after installation, ensuring safety, aesthetics and excellent performance.

Features：

- Satisfactorily solving the problem of electric field stress concentration at high-voltage connections and

fractures in cables' outer shielded layer;

- Made of high-quality EPDM rubbers, which presents excellent performance in resistance against electric

corona, free discharge and weather;

- Fully insulated, fully sealed, and fully shielded.

Model Description：

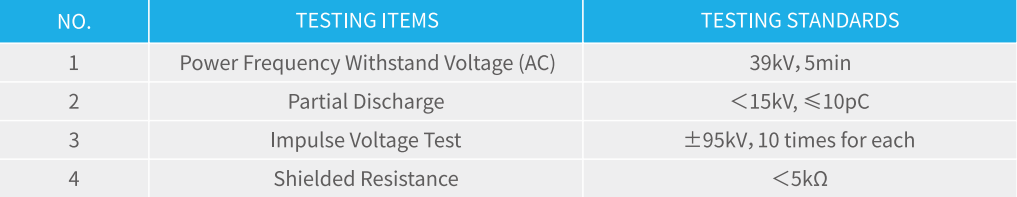

Main Electric Performance：

 Standards：

GB/T 12706.4  IEC60502-4  DIN 47636   EN50181

Dimensions：
