Suitable for SF6 gas insulated RMU, one end is sealed in SF6 or high-voltage insulation oil, and the other end can be connected to the front connector.

Features：

-The bushing is designed according to the standard EN 50181, the applicable voltage of this product is 12kV,

and the applicable current is 630A and 1250A;

-The contact point on the flange surface can be directly grounded or connected to the live display to indicate

that the bushing is live;

- Recommended live display device sensor capacity is 16-20pF.

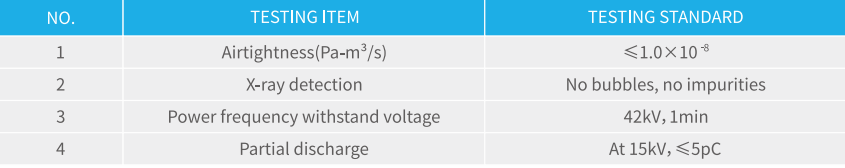

Main Electrical Performance：

 Standards：

GB/T 4109-2008、GB/T 11022-2020、EN50181

Dimensions and Pictures：
