The 15kV/200A shielded elbow type PT plug is made of high-quality raw materials by layered injection molding, suitable for providing operating power or connecting the high-voltage side of measuring protection transformers for electric operating mechanisms. The electrical performance of the product is superior to national standards, and the plug and unplug connection is simple and convenient. It has a reliable anti loosening device, and after installation, it forms a fully sealed and shielded structure, which is safe, beautiful, and superior in performance.

Features：

- Satisfactorily solving the problem of electric field stress concentration at high-voltage connections and

fractures in cables' outer shielded layer;

- Made of high-quality EPDM rubbers, which presents excellent performance in resistance against electric

corona, free discharge and weather;

-convenient for installation, reliable anti loosening.

- Fully insulated, fully sealed, and fully shielded.

Model Description：

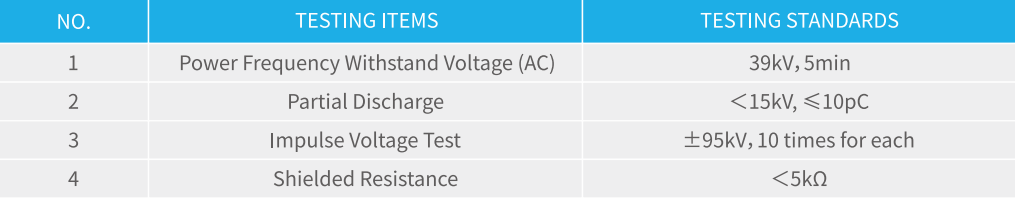

Main Electric Performance：

 Standards：

GB/T 12706.4  IEC60502-4  IEEE Std 386

Dimensions：
