Shielded top expansion busbar connectors are used for busbar connections between gas insulated metal switchgear. The fully sealed, fully insulated, and fully shielded connection between the load switch and busbar completely avoids the fatal defects caused by high voltage exposure in harsh weather, and is easy to install and highly reliable. The busbar connector is composed of a combination of busbar, terminal joint, and intermediate joint, and the length of the busbar is customized according to actual needs.
Features：
- Made of high-quality EPDM rubbers, which presents excellent performance in resistance against electric
corona, free discharge and weather;
- Fully insulated, fully sealed, and fully shielded.

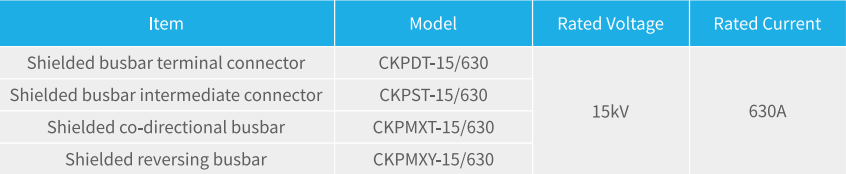

Model Description：

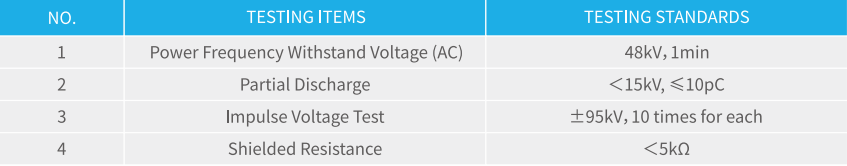

Main Electric Performance：
Standards：
GB/T 12706.4 IEC60502-4 DIN 47636 EN50181

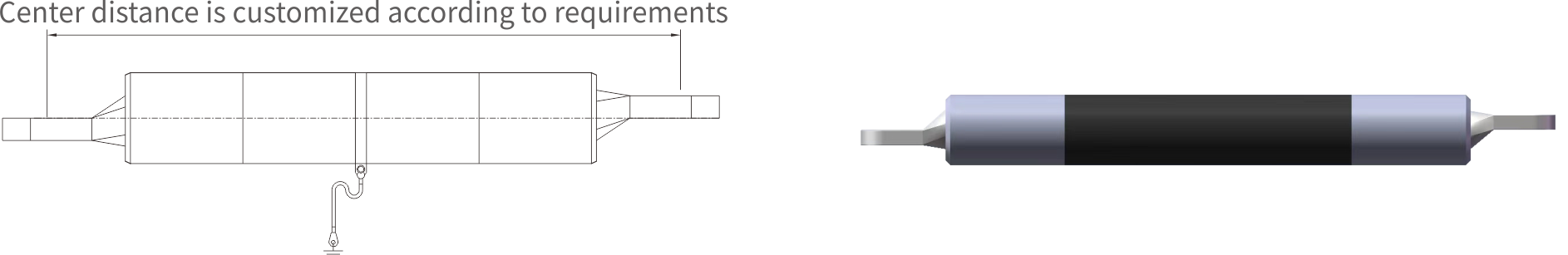

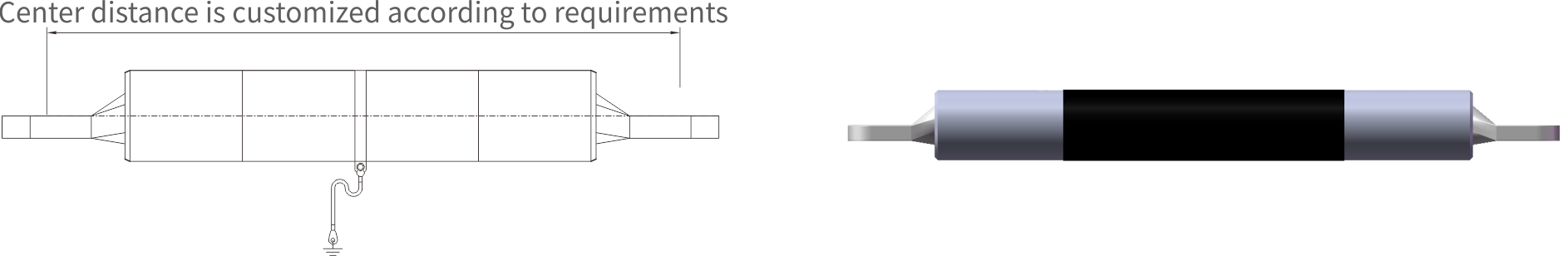

Dimensions and Pictures：
Shielded busbar terminal connector
Shielded busbar intermediate connector
Shielded co-directional busbar
Shielded reversing busbar
